QRU-100
Thermal Analysis Instruments
Thermal Monitoring Kit For Buildings
The QRU-100 Thermal Monitoring Kit for Buildings is designed for building inspectors, energy audit specialists, researchers, and energy advisors. It is easy to use, lightweight and comes pre-configured and ready to go.
QRU-100
The QRU-100 is designed to make the thermal performance evaluation of buildings and components easy, efficient, and accurate.

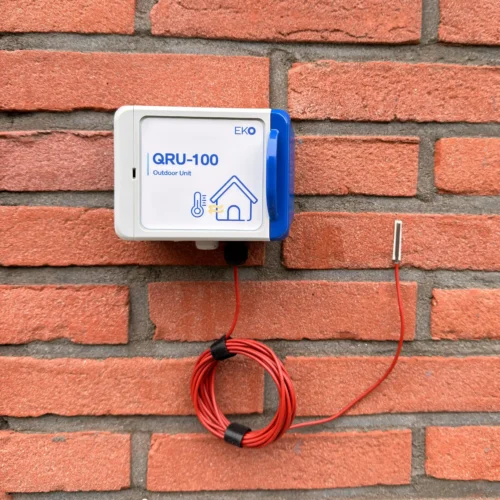

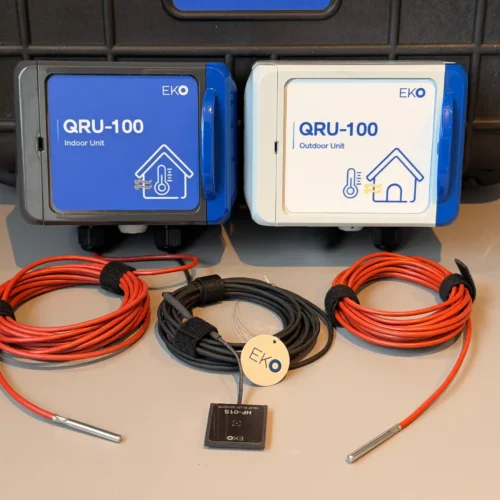

A critical requirement for modern construction, renovation, quality assurance, and energy efficiency assessment, the QRU-100 thermal monitoring kit includes separate indoor and outdoor measuring units. Indoor heat flux monitoring, together with indoor and outdoor temperature sensors, allow the QRU-100 to measure both thermal transmittance and thermal resistance, the U and R-Value of a wall or similar structure based on the standard methods defined in ISO 9869, ASTM C1046 and ASTM C1155.

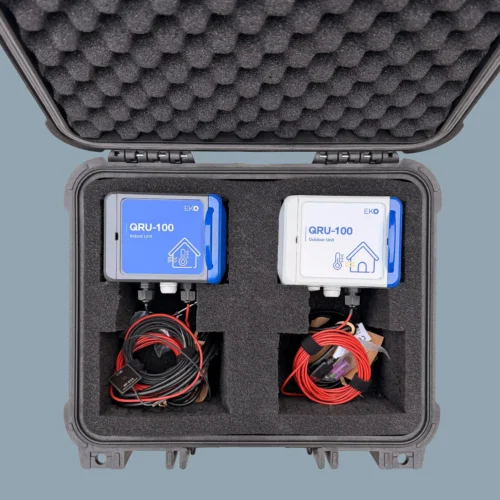

The QRU-100 is delivered in a weather-proof case. Each measuring unit has a long-life battery and ultra-high-resolution data-logger that can store up to 4 million data points, preconfigured and ready to use.
Key Features:
- Pre-configured, quick set up & ready to go
- Tough carry case & Weather resistant housing
- Independent ultrahigh resolution data loggers in each unit
- Compatible with ISO 9869, ASTM C1046 & C1155 in-situ thermal measurement
Resources
Documentation
Accessories
Frequently Paired Together
| ISO 9060:2018 | Class B |
|---|---|
| Response time 95% | <18 Sec |
| Zero offset A – Thermal Radiation (200W/m²) | ± 5W/m² |
| Zero offset B – Temperature change (5K/hr) | ± 2 W/m² |
| Zero offset C – Complete Zero off-set | ± 7 W/m² |
| Non-stability (change/year) | < 1.5% |
| Non-linearity (100 to 1000W/m²) | ± 1% |
| Directional Response (at 1000W/m² | 0 to 80°) | ± 18W/m² |
| Spectral Error | ± 0.2% (Spectral selectivity ± 3%) |
| Temperature response (-20°C to 50°C) | ± 2% |
| Tilt Response (0-90° | 1000W/m²) | ± 1% |
| Additional Signal Processing Error | < 1W/m² |
| Technical Features : | |
| Wavelength Range | 285 to 3000 nm |
| Irradiance range (W/m²) | 0 to 2000 |
| Signal Output | MODBUS 485 RTU, SDI-12, 4-20mA, configurable 0-10mA / 0-1V* |
| Sensor Diagnostic | Relative Humidity ± 2% Temp. ± 0.1% / Tilt Angle ± 1° |
| Operating temperature | -40 to 80°C |
| Supply voltage | 5 to 30 VDC |
| Power Consumption | < 0.2 W |
| Ingress protection | IP67 |
| Standard Cable Length | 10m (Optional lengths 20m, 30m, 50m) |
