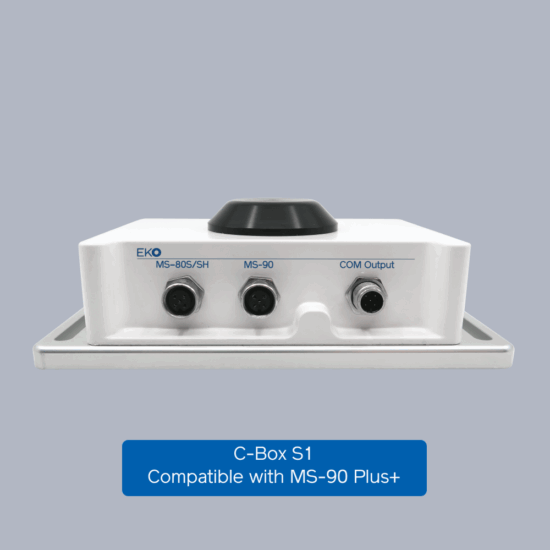

C-Box S1
Compatible with MS-90 Plus+
The C-Box-S1 Control Interface enables a range of sensor control and data processing functions for different EKO sensors and is at the heart of the MS-90 Plus+ trackerless solar monitoring solution.
C-Box S1
Sealed inside an IP65 all-weather case, with GPS receiver, and Modbus 485 RTU output, the C-Box Modbus processing interface enables a range of sensor control and data processing functions.
Working in tandem with the MS-90 DNI sensor and ISO 9060:2018 Class A leading MS-80SH pyranometer, the C-Box, is an essential component of the unique MS-90 Plus+ trackerless solar monitoring solution, allowing the system to accurately measure DNI, GHI, and to calculate DHI from measurement data and the position of the sun.
Frequently Paired Together
| Communication interface | RS-485 Modbus |
|---|---|
| Channels | 2 units |
| Functions | DNI, GHI, DHI processing |
| Ingress protection | IP65 |
| Operating temperature range | -40 to 80 °C |
| Voltage range | 12V |
| Power Consumption |
